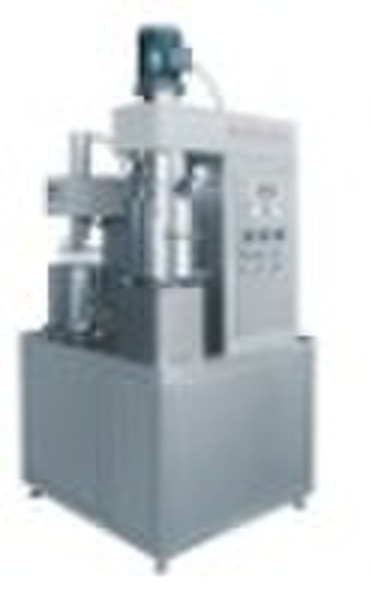

Double Planet Mixer/multi-shaft mixer

Brief description For this equipment has good mixing , shearing , dispersing function, especially suitable for scattering and mixing of solid-solid phase , solid - liquid phase, liquid-liquid phase, so it is especially applied in such trades as chemical industry , food , light industry , pharmacy , building materials ,etc.. Working process When the planet frame rotates, it drives three axes of mixing and scattered axes in the case to revolute and rotate around the storage bucket. It makes the material strongly cut and kneaded, achieving the goal of fully dispersing and mixing. Wall scraper blade rotates with planetary shelf on the planetary shelf. Constantly wiping away the barrel wall makes the barrel wall no residual material, improving mixing effect. The length of stirring time is controlled by customer as per the property of the material which can be adjusted by control panel. The sealed cover and planet stirrer are lifted by two-column hydraulic lifting system which is stable, fast and portable. Technical parameters Item ParametersSIZE OF BUCKET dia.208*260 Design Volume 8LCapacity 5LStirring power 1.5KwScattered electric power1.5KwRevolution speed 0-65 rpmStirring rotation speed 0-170 rpmScattered disk rotation speed 0-1400 rpmScraper speed the same speed of revolutionLimit vacuum -0.09MpaDistance of reactor up and down 300mmDistance of disk up and down 300mmBinder''s largest power 5THydraulic Station Power 1.5KwVacuum power 0.37KwHeating power 2KwSIZE (Length X Width X Height) 990*910*2360
