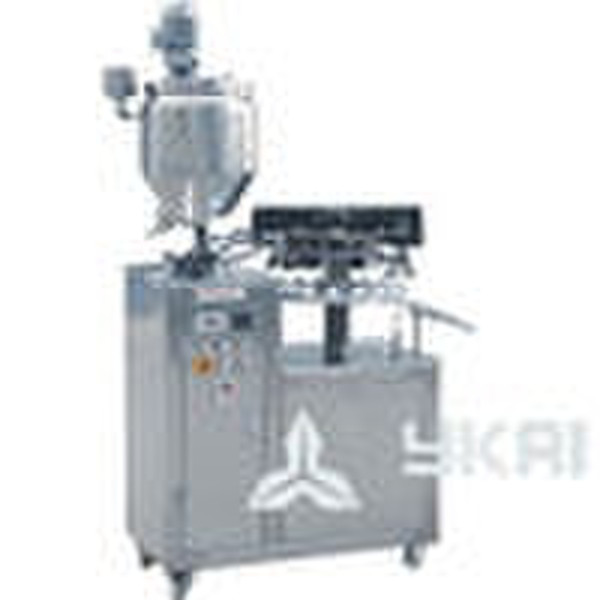

Metallic Tube Filling and Sealing Machine

The machine is used mainly to fill material into metal tube with fixed quantity and seal the tube.It is widely used for the packing of prosucts of pharmaceutical,cosmetic,foods,and chemical instustry. Working process Manually put the metal tube (max: 16 tubes) into the tube-holding base. With the help of automatic mechanical transmission shifted. Automatic detection and confirm the tube base have tube and then automatic filling. The final step is execute the sealing with three-fold or four-fold. Features The machine,with a controllable filling volume or quantity,is featured with a reliable performance.The machine is suitable for the filling of metallic tubes of any type because is the tube-holeing sealing can be reached. The parts which touches material is made of stainless steel. Specification 1. Power Supply:AC 220V±10% 50HZ 2. Work Temp:5 500C 3. Filling Quantity:10-75ml, 20-150ml 4. Quantity Error:<2% 5. Motor Power:0.75 1.1kw 6. Compressed Air : pressure0.6 0.7Mpa Volume:0.2m3/min 7. Capacity:10 50 tube/min (adjustable) 8. Dimension:1000mm*600mm*1700mm 9. Weight:400kg
