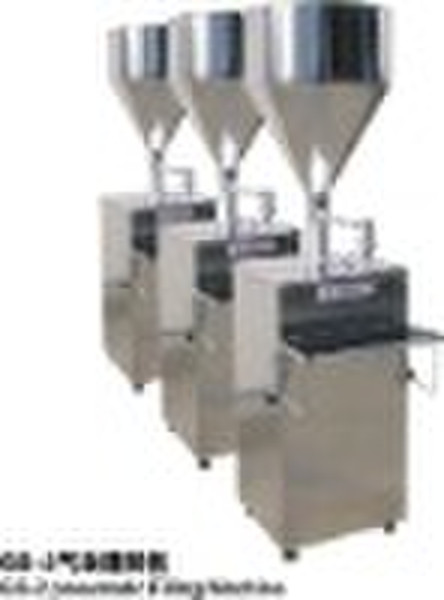

Pneumatic Filling Machine

GS-1 type is Electric Filling Manchine.GS-2 type is specially designed for against-explosion-use.The machine is mailnly used vertically to suit various filling demands. The manchine can be divided into types A,B,C,D,E and F,depending on filling capacity ranging from 5 through 1000ml. Feeding:Auto-suck tupe(optional) Control:pneumatic Specification: 1. Compressed Air:pressure:0.4 0.6Mpa Volume>>0.3m3/min 2.Filling Capacity:Type A:5 15ml Type B:10 75ml Type C:20 150ml Type D:50 300ml Type E:100 500ml Type F:200 1000ml 3.Mechanical Capacity:10 40time/min. 4.Quantity Error:<2% 5.Moveable Range of Filling Base:100mm 6.Volume of Material Pot:20L,30L,40L,50L 7.Overall Diameter of Filling Container:Depending on material and filling quantiity 8.Dimension:500mm*450mm*1500mm(elevtrical) 400mm*400mm*800mm(pneumatic) 9. Weight:80kg
