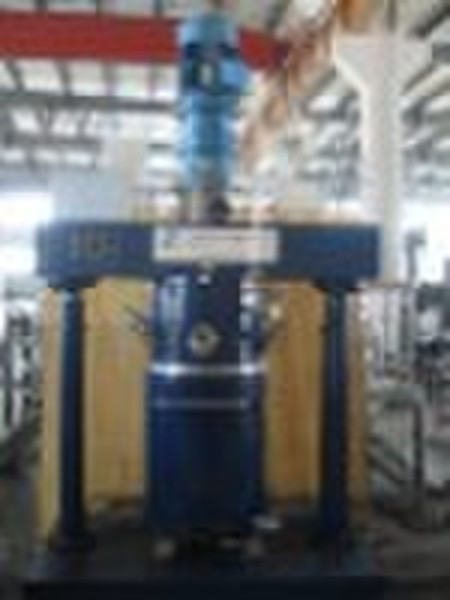

SXJ Double planet mixer

Introduce: the Double Planet mixer digesting and assimilate foreign advanced technology, It from electrical machines, Moderating machine ,Framework,Seal and cover,planer frame rotates, agitator, Wall shaving device, Storage bucket, The hydraulic pressure of twin columns hoists or lower the device and so on make up. Distinguishing: when the planet frame rotates, While driving three axes of mixing in the case to revolve round the sun around the storage bucket at the same time, A planetary blade is the same, it rotates on its own shaft like a normal propeller, and at the same time it rotates in a circle following the wall of the vessel. In a double planetary, there are two blades, each rotating on its own and also around an axis between them. The usual shape of the blade is rectangular. mix axle high-speed rotation , thus make supplies strong shear , mediate function, achieve the goal of fully dispersing and mixing, shave the wall one hundred sheets rotating with planetary shelf on the planetary shelf , constant hanging and wiping away the barrel wall, make the barrel wall not delayed in the material. this equipment have mixing , shearing , dispersing function good, suitable for firm especially - firm looks , firm - liquid phase , liquid - the scattering of the liquid phase , mix, so find extensive application in such trades as chemical industry , food , light industry , pharmacy , building materials ,etc., cosmetics , printing ink , chocolate , fluid sealant , binder , ointment and pastel supplies ,etc. such as using for producing. Double planet mixer specification and technical parameter specification parameter 60L100L200L300L500L1000LBucket volume(L) φ250×200φ500×500φ700×600φ750×750φ860×860φ1250×1000Revolution motor(kw/rpm) 1.57.511153055Revolution speed(frequency control)(rpm) 0-600-600-600-600-420-40Rotation speed(frequency control)(rpm) 0-750-750-750-600-420-40Stirring speed(frequency control)(rpm) 0-600-600-600-400-330-33Vacuum (Mpa) ≤-0.098≤-0.098≤-0.098≤-0.098≤-0.098≤-0.098Lift and down(mm) 30065070090010001100Weight (Kg) 30020002500300035004500Dimension Length(mm)70019402170264026702880Width(mm)400650860108011001400Height(mm)170022002300280036003900
